Chemical industry

Inorganic and organic chemicals are omnipresent and an indispensable part of daily life. The manufacturing processes in which liquids and gases as well as powders and paste-like media are shut off and controlled are diverse and complex. The valves required for this must meet the highest standards of control accuracy, reliability and durability. Safety in explosion-proof applications as well as high internal and external leak-tightness of the valves are basic requirements for operation in chemical plants.

Sliding gate and ball sector valves from Schubert & Salzer are used in the manufacture of basic chemicals such as ethylene, sulphuric acid and caustic soda as well as in further processing into chemical intermediate and end products such as plastics, paints and varnishes as well as fertilisers.

Valves for heating and cooling processes

Steam, thermal oil and cooling water are important auxiliary media in the thermal processes for the manufacture of chemical products. Sliding gate valves impress in these applications due to their control accuracy, high reliability and long service life with minimal energy consumption. They cover a wide temperature range, have low heat losses due to their compact size and can be insulated extremely well. The energy-efficiency of thermal processes can be increased as a result.

Typical applications for sliding gate valves in thermal processes are, for example, mixing vessels for the manufacture of resins, powders and phenols; evaporation and drying systems, e.g. for the manufacture of silicic acids and titanium dioxide; as well as distillation columns for the manufacture of aromatic hydrocarbons.

Valves for extreme conditions

Aggressive media, high pressures and temperatures are the speciality of sliding gate valves. Made of alloy, they are a crucial component in acid dilution, for example in the manufacture of ultra-pure sulphuric acid. They compensate precisely for product fluctuation widths of up to 100% with maximum control accuracy and dynamics. Other applications include the control of nitric acid, ammonia, vinyl acetate or trichlorosilane in polysilicon production. Due to their short stroke and the very low moving masses, sliding gate valves are ideally suited for applications with high switching capacities and for the generation of pressure pulses, such as in the cleaning of filter elements in hot gas filters or in the manufacture of carbon black.

In the case of paste-like and particulate media, ball sector valves often solve problems when used as stop or control valves. Due to the specially shaped ball sectors, the valves achieve a very high control accuracy and a large volume spread, as well as being extremely wear-resistant even with highly abrasive media. Ball sector valves are used, for example, in the dosing of paint suspensions with a solid content, in lubricant production, for the control of limewash as a neutralizing or flocculating aid, as well as in the manufacture of stearic acid.

Valves for areas with potentially explosive atmosphere

Chemical processes often require the handling of flammable gases, vapours and dusts. These production plants are therefore subject to strict requirements with regard to explosion protection. Stop and control valves from Schubert & Salzer are approved and suitable for use in these areas in accordance with ATEX 2014/34/EU. For systems with explosion protection requirements based on U.S. and Canadian standards, valves from Schubert & Salzer are also available with FM certification (Factory Mutual Approvals) for Class I, Division 1 or Zone 0 intrinsic safety circuits or for Class I Division 2 non-incendive circuits.

Valves with a high leak-tightness

Reliable internal and external leak-tightness is an important prerequisite for the safe use of On-Off and control valves in chemical plants. All sliding gate valves and ball sector valves as well as special seat valves comply with the TA-Luft (Technical Instructions on Air Quality Control) requirement with EN ISO 15848-1.

Sliding gate valves are suitable for this purpose due to their special design principle. Leakage rates of less than 0.0001% of the Cv value are achieved. This corresponds to leakage class IV according to IEC 60534-4. The short stroke of the sliding gate valves of only 6-9 mm leads to a long service life of the spindle seal and spindle, even with high switching frequencies and continuous control operation. As a result, the external leak-tightness is maintained.
Valves with metal bellows are chosen for the handling of hazardous media. They seal to the outside with 100% reliability.

Resource-saving valves

As an energy-intensive industry, the chemical industry has a special responsibility to make production processes sustainable and resource-saving.

Sliding gate valves from Schubert & Salzer can help to achieve this goal. Due to their special design principle, they require only minimal actuating forces. For example, in an application for the manufacture of EVOH resins, such as those used in multi-layer food packaging, switching to sliding gate valves saved over 80% of the control air and rapidly reduced operating costs.

A sliding gate valve in the size DN 150 weighs just under 15 kg, while a globe valve often weighs 150 kg or more. This not only makes the installation, insulation, maintenance and repair of the valves much easier and more efficient, but also saves immense resources in the manufacture and transport of the sliding gate valves due to the significantly lower use of materials.

Valves for dosing and low-flow applications

The chemical industry often uses catalysts, gases, and additives to facilitate reactions. These substances can increase the production rate of desired products while reducing the creation of unwanted byproducts. Catalysts promote faster and more energy-efficient chemical reactions, which helps produce more of the desired product accurately and reliably. Precision, reliability, and repeatability are of utmost importance when it comes to chemical dosing as chemicals can be expensive. Therefore, components used in chemical dosing must deliver quality and performance to minimize costs and maximize performance.

Schubert & Salzer’s 7042 microflow control valves greatly enhance the accuracy of these processes through precise and reliable sizing of flow rates through our internal ValSize software. Additionally, the low-flow control valve initiates an integrated, top-mount digital positioner, eliminating backlash and hysteresis providing enhanced rangeability compared to metering pumps and other control valves.



Selected references

Application Report - Eval Europe NV

Sliding Gate Valves improve Chemistry Park Steam Filter Station

Kuraray is one of the world's leading suppliers of ethylene vinyl alcohol copolymers (EVOH), which, for example, provide multi-layer food packaging with a better barrier layer. The steam required for the manufacture of EVOH in the Antwerp Chemicals Park, the location of the Kuraray subsidiary Eval Europe, is provided by a central energy plant. Kurt Hellemans, Senior E&I engineer at Eval Europe, installed the first DN250 sliding gate valves in the steam filter station. After years of experience with the sliding gate valves, he now draws a balance.

Download

Application Report - Avery Dennison

In Touch with Adhesion

In the polymerization of adhesives, the level of precision of the valve technology plays a key role. For this reason, the new Avery Dennison reactor uses the ATEX-certified ball sector and sliding gate valves from Schubert & Salzer.

Download

Application Report - Dow Chemical

Robust segment disc valves also contribute significantly to availability of industrial power plants

At its production site in Stade, the US-American company Dow Chemical Company (“Dow”) operates a state-of-the-art gas and steam turbine power plant which produces not only power but also thermal energy which is necessary for operating the chemical plants. Due to power/heatcogeneration, efficiency rates of more than 80% can be reached.

Download

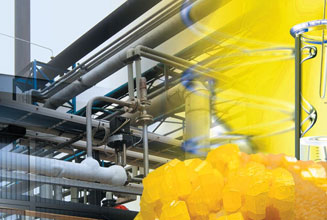

Application Report - PVS Chemicals

Producing dilutions with a tolerance of only 0.02 %

PVS Chemicals Belgium relies on the control precision and media resistance of the sliding gate valve.

Download

Application examples for stop and control valves in the chemical industry:

  • Manufacture of basic chemicals such as caustic soda, technical chlorine, sulphuric acid, hydrochloric acid, ethylene, etc.
  • Manufacture of paints, varnishes and solvents
  • Manufacture of polysilicon / control of H2, N2 and trichlorosilane
  • Manufacture of hydroxypropyl methylcellulose (HPMC)
  • Control of stearic acid
  • Manufacture of synthetic resins (control of steam, cooling water, vacuum)
  • Manufacture of fungicides and herbicides
  • Control of catechins (muddy, crystallising)
  • Manufacture of fine chemicals
  • Manufacture of chemicals for the production of adhesives
  • Manufacture of fertilisers
  • Manufacture of carbon black (black) and titanium dioxide (white)
  • Manufacture of special plastics, e.g. for car headlights and branded toy building blocks
  • Manufacture of detergents
  • Manufacture of synthetic rubber
  • Manufacture of lubricants
  • Manufacture of polystyrene for packaging material
  • Control of vinyl acetate
  • Manufacture of organic phosphorus for detergents
