Sliding Gate Valves

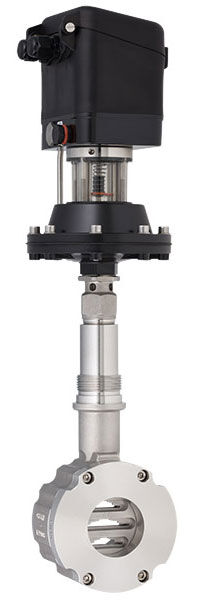

Type 8028 – Sliding gate valve

Product line GS3

The pneumatic sliding gate valve type 8028 in reinforced GS3 design with integrated positioner and with a mounted diaphragm actuator is ideal for compact plant installations in process technology. In addition to the compact design, this valve is characterised by high control precision and a long service life.

  • Size

    Size:

    1/2" - 6"

  • Pressure

    Pressure:

    145/580 psi

    ANSI #150, #300

  • Material

    Material:

    Stainless steel

    Body CF8M

    Cover 316L

    Carbon steel

    Body WCB

    Cover 316L

  • Temperature

    Temperature:

    Media temperature: -76 °F up to 662 °F

    Special versions available on request.

Connection

Wafer type design and with threaded connection
Positioner

Digital positioner type 8049

- 2-wire, 4-wire

- Ex-Pro explosion-proof

- IO-Link

- Integrated process controller IPC
Accessories

Metal bellows

Limit switch

Position feedback

Pilot valve

. . .
Ex-proof

optional ATEX non-electrical

II 2G Ex h IIC T6…T1 X Gb

II 2D Ex h IIIC 85°C…530°C X Db
Approvals, certificates and declarations

TA-Luft / ISO 15848-1

EC Declaration of Conformity

UKCA Declaration of Conformity
For details, see the documentation or upon request.
