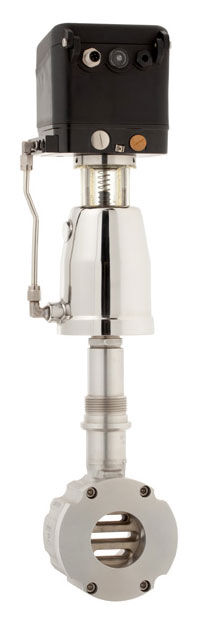

Sliding gate valve with piston actuator and integrated positioner offers a compact valve assembly, characterized by a high control quality and control dynamics. Due to the direct and backlash-free installation of the positioner on that piston actuator, these valves have no exposed moving parts.
1/2" - 10"
ANSI #150, #300
Body CF8M / 316L
Cover 316Ti / CF10MC
Body WCB / A738
Media temperature: -76 °F up to 662 °F
Special versions available on request.
Wafer type design
Digital positioner type 8049
Pneumatic and electro-pneumatic positioner type 8047
Positioner with integrated process controller type 8049 IPC
Positioner type 8047 and type 8049 also in explosion-proof version
. . .
