Sanitary Valves

Ultra-clean - precise - aseptic control products

Sanitary valves by Schubert & Salzer

Purity is preeminent In many industries demanding the highest degree of cleanliness. Aseptic valves from Schubert & Salzer operate to the highest global requirements and specifications. Right angle self draining design from 316L barstock, valves meet FDA and USP Class VI requirements with EHEDG approval. Products have low EP finishes available and are CIP and SIP capable. Additionally, models are available that conform to 3A sanitary standards which protect food, beverage and dairy products from contamination.

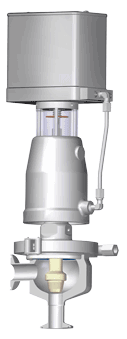

sanitary valves by Schubert & Salzer

Design principle sanitary valves

The demand for absolute cleanability in pharmaceutical and food processes depends directly on the flow conditions. In a nutshell, this means: the higher the flow velocity, the higher the wall shear stress on the surfaces in contact with the fluid and thus the greater the cleaning effect. A special EPDM diaphragm with a PTFE film coated on the process side separates the process chamber from the valve actuator.
The valve body is manufactured from pore-free stainless steel 1.4435 barstock material, finely turned or electropolished with roughness depths from Ra < 0.6 µm to Ra < 0.25 µm. The control plugs made of PEEK are FDA-compliant and meet the requirements of the USP Class VI, of the EU regulation 1935/2004 and the new plastics regulation 10/2011.
For inspections, or if a repair should be necessary, the aseptic right angle valve can be opened easily and quickly thanks to a clamp connection between valve and actuator. This valve series is characterized by compact pneumatic piston and diaphragm actuators combined with the proven digital Schubert & Salzer TopMounted positioner (optionally made entirely of stainless steel).

explosion drawing sanitary valves by Schubert & Salzer

The advantages of sanitary valves


3A certification

Valve execution according to Directives (EC) 1935/2004 and (EU) 10/2011


USP Class VI

Design tailored consistently for good cleanability

Made from pore-free stainless steel barstock material

High rangeability 50:1 and unusually large control range

Simple maintenance, few wearing parts
